Sodium Silicate

Hannon, A. C., Vaishnav, S., Alderman, O. L. G. & Bingham, P. A., The structure of sodium silicate glass from neutron diffraction and modelling of oxygen-oxygen correlations, J. Am. Ceram. Soc., 104(2021)6155. DOI: 10.1111/jace.17993 Open Access PDF

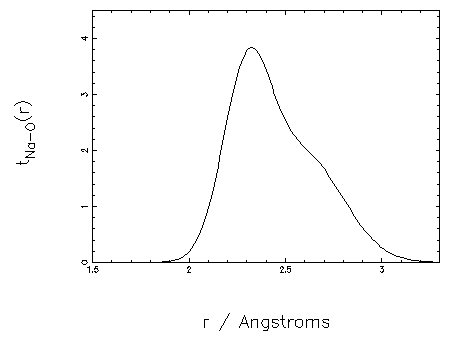

Na-O partial correlation function, tNa-O(r) for binary silicate glass with 42.5 mol% Na2O: tNaO.txt

(Corresponding experimental data are here: Sulphate in Silicates )

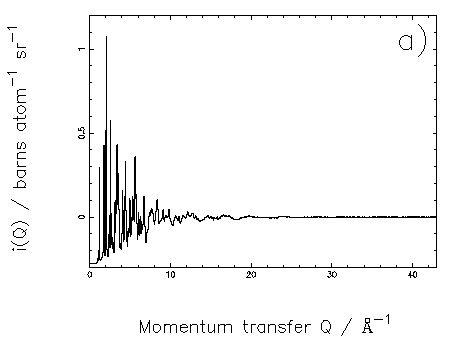

 Crystalline Na2SiO3. Neutron diffraction data:

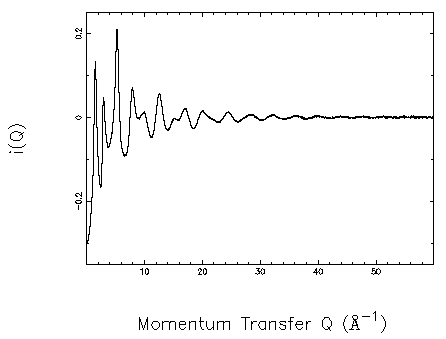

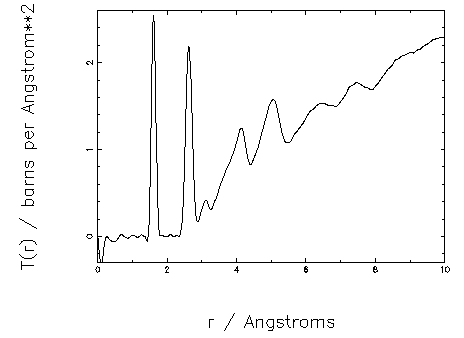

Pure SiO2 glass. Neutron diffraction data:
